*** USE OPTION [1] TO SELECT CHAIN SIZE

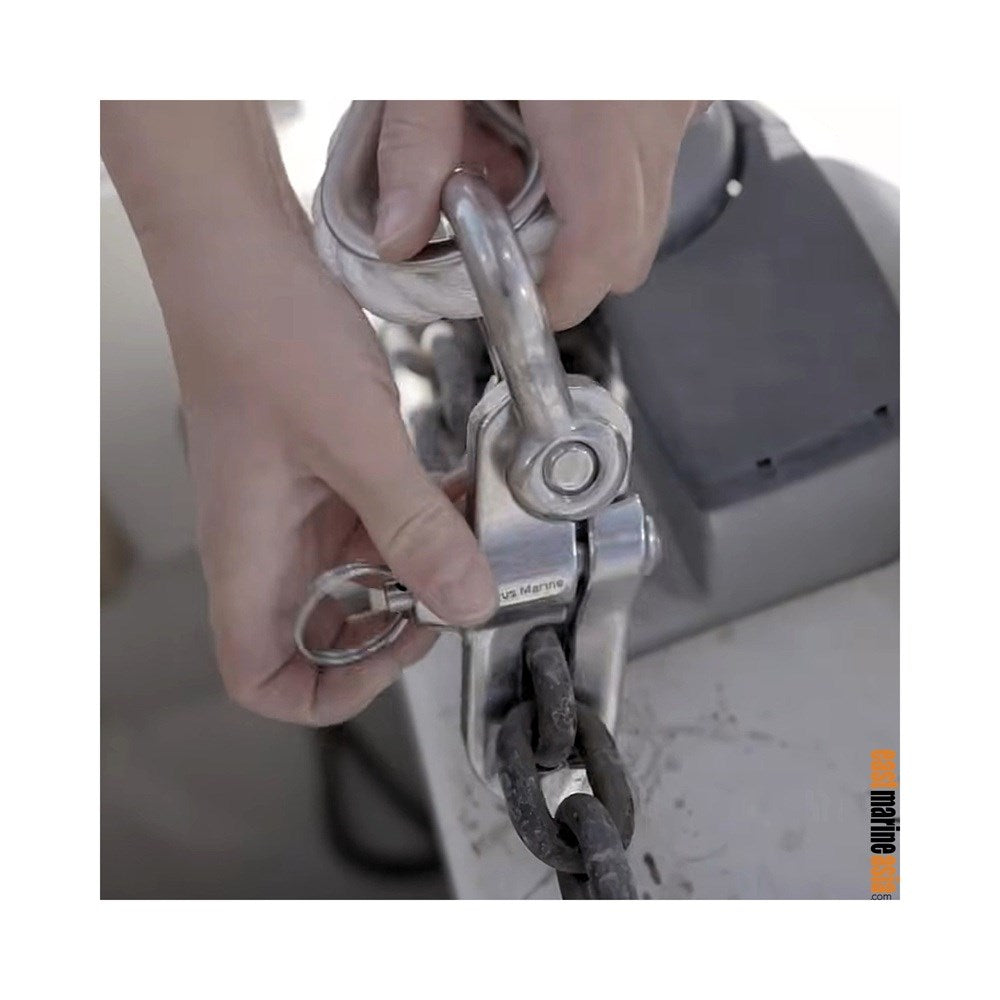

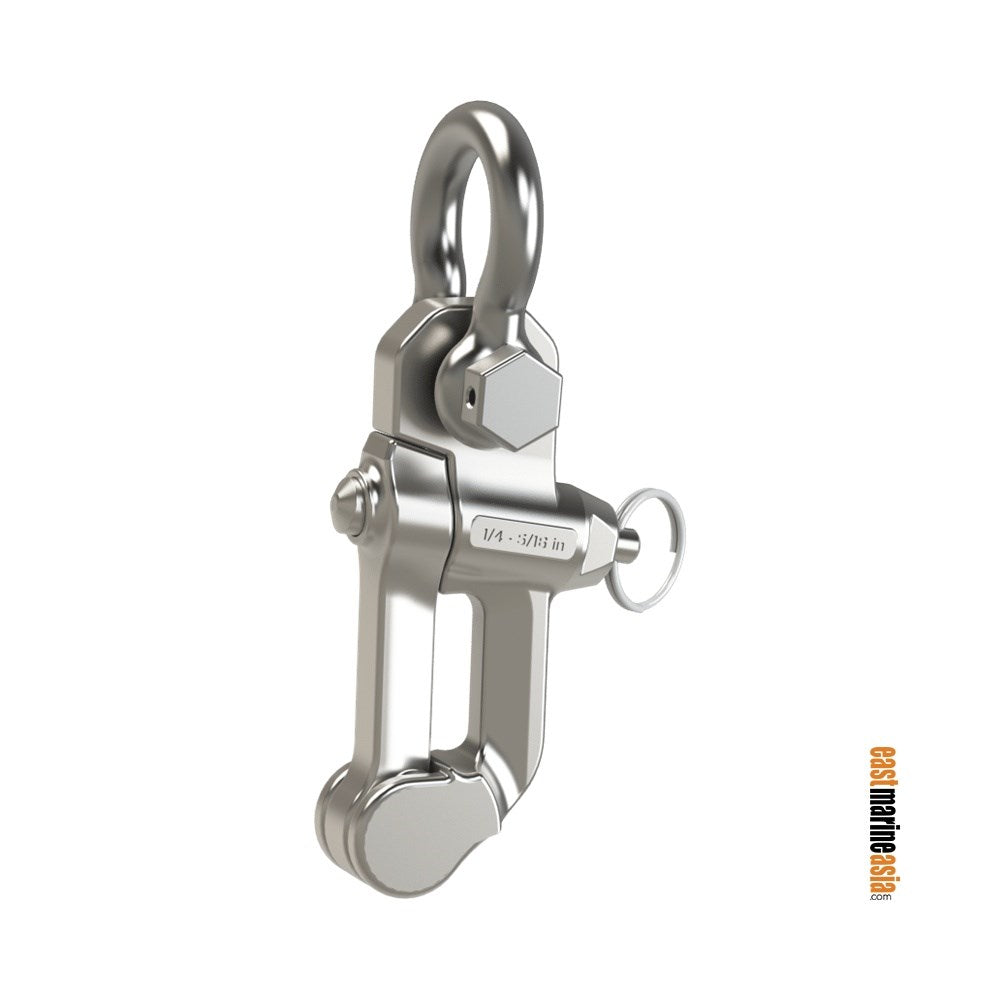

The Mantus M3 Chain Hook offers a safer and more secure way to attach a snubber or bridle to your anchor chain. Unlike traditional chain hooks that can fall off when the chain is unloaded, the M3 Chain Hook securely latches onto the chain for greater safety and reliability.
Designed with a compact profile, it passes easily through most bow rollers while remaining simple to install and remove.
Features
👉🏻 Secure locking design stays attached even when the chain is unloaded
👉🏻 Safer and more reliable than conventional chain hooks
👉🏻 Manufactured from high-strength 2205 Duplex Stainless Steel
👉🏻 Excellent corrosion resistance for harsh marine environments
👉🏻 Ideal for anchor snubbers and bridles
👉🏻 Compatible with BBB, Proof Coil, Hi-Test (G43) and Stainless Steel chain
👉🏻 Compact design fits through most bow rollers
Material Information
The official material designation is 2205 Duplex Stainless Steel. Some marine suppliers commonly refer to this material as SS318, although this is not the official grade name.
2205 Duplex Stainless Steel is magnetic, unlike standard 316 stainless steel. This is a normal characteristic of duplex stainless steel and does not indicate inferior quality or reduced corrosion resistance.
2205 Duplex Stainless Steel offers significantly higher strength than traditional 316 stainless steel, making it an excellent choice for demanding anchoring applications.
|
Chain
Size
|
WLL
(kg)
|
UBS
(kg)
|
Shackle
(Size)
|
Rec'd
Snubber Rope
|
|
M3CH1
6 / 7 mm
- 8 mm
|
1,137 |
4,549 |
11 mm |
12 - 16 mm |
|
M3CH2
8 mm - 10 mm
|
1,517 |
6,067 |
12 mm |
16 - 20 mm |
|
M3CH3
10 mm
- 12 / 13 mm
|
2,179 |
8,715 |
16 mm |
20 - 24 mm |
|
M3CH4
12 / 13 mm
- 15 / 16 mm
|
3,742 |
14,965 |
16 / 19 mm |
24 - 32 mm |
